ABLB80-25L 60PCS/H 플라스틱 미완성품 병 취입기 몰딩기 20L

1개 세트
MOQ
US $50,000-60,000/ Set
가격
ABLB80-25L 60PCS/H 플라스틱 미완성품 병 취입기 몰딩기 20L
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
최대. 제품 양: 25L
클램핑 시스템: 토글식 클램핑 시스템
압출기 모터: 30 kw 지멘스 모터
상술: ABLB80-25L
요약하세요: 우수한 합금 강, 센터 피딩
역: 단일 역 또는 두배 스테이션
HS는 코드화됩니다: 8477301000
애플리케이션: 병, 병, 재리 캔, 갤런, 용기
머리는 죽습니다: 단일 해드 또는 양두
자동차 디플래싱: 자동차 디플래싱으로
곰팡이: 한 공동 또는 2 공동
수티러블: 20L 25L 병
난방 지역: 4 알루미늄 히터
고정시키는 힘: 270 나트
운반 포장: 필름 포장
생산 능력:: 50~60 PCS/H
하이 라이트:

machine

,

20L 플라스틱 병 블로우 성형 장치를 부는 machine

,

60 PCS/H 미완성품 병을 부는 ABLB80-25L 미완성품 병

기본 정보
원래 장소: 치안스 장자강 시
브랜드 이름: Dawson
인증: CE
모델 번호: ABLB80-25L
결제 및 배송 조건
포장 세부 사항: 나무로 되는 케이스에서 포장
배달 시간: 35-45 일 일
지불 조건: L/C (신용장), 전신환
공급 능력: 10-20Set/month
제품 설명
ABLB80-25L Servo Motor Blow Moulding Machine for 20L HDPE Jerry Can



Our sales consultant



1. We can provide comprehensive and professional Suggestions on equipment selection.

2. Energy consumption calculation and investment income analysis can be provided.

3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.

4. Extrusion plastic bottle blow molding machine has remote maintenance function





Automatic Extrusion Blow Molding Machine ABLB80-25L
  • Product: 20L / 25L HDPE Jerry cans
  • Power supply: 380/220v 50/60 Hz Tri-phase
  • Output capacity:20~25L: 50~60 pcs/h (1200~1400 pcs/day)
  • Layer: Single layer
  • Lever line system: Available
  • Parison control: MOOG 100 points
  • Max volume: 25L (Single die head)
Basic parameters Suitable material PE.PP,PVC,PS,PETG,so on
Max volume 25L
Output capacity 50~60 PCS/H
Size 4.4×3.4×3.6(M)
Weight 11.3T
system Specification Parameters Note
Plasticizion system
Summarize High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer Hard finishing,High intension,Low noise reducer
Screw 1 80mm,L/D ratio 25,130kg/h 38CrMoALA Cooling system available
  Heating Zone 4 Aluminum Heater Automatic heating
  Heating power 10KW/H
Cooling Fan Separate cooling system for heaters Automatic cooling
Extrusion system
Summarize High-grade alloy steel, center feeding
Die head number 1
Center distance of die heads /
Max die mouth 200
Extruder Motor 30kw SIEMENS MOTOR
Clamping system
  Summarize High intension, rigidity, center mold locking, stable mould opening and advanced clamping system
Clamping force 270 KN
Distance between platens 450~950mm
Mould template 680× 660
Mould material S50C/Aluminium with beryllium copper
Electricystem
Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)

Operate interface Touch screen, automatic self-diagnose alarm system
Parison control MOOG 100 points controller
Temperature control Automatic temperature control module
Movement control TECH-2/Mitsubishi, Chinese/English
Version

Electric protection Ampere overload, electric short circuit self-protection function
TOTAL rated power 67kw
Average power consumption 33 kw
Inverter Delta
Hydraulic system
Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor 11kw motor (380V/220V,50/60HZ)
Oil pump double vane pump
Valves Imported oil pump valves and connections
YUKEN

Oil pipes Double layer overpressure resistant
System pressure LP 100 bar / HP 130 bar
Threads of hydraulic block use of screw joint GE(ISO 1179)

Cooling system Post cooling by cooling air and cooling water with Aluminum Mask
Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.6~0.8Mpa
Air displacement 2.2 M3/min
Electromagnetic valve Taiwan AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow 100L/min
Water pressure 0.4-0.6MPa







#blow molding machine #Extrusion Blow Molding #Injection blow molding machine #PET blow molding machine # injection molding machine # blowing mould # plastic bottle making machine #plastic bottle mould #bottle machine #plastic machinery #blow molding mould #moulding machine # moulding mould #China blow molding machine #blow molding machine made in China






● Co: Dawson Machinery & Mould Group Co.,Ltd
● Tel: 086-0512-58990369
● Mobile/WhatsApp/Wechat: 008615306246783

● Skype:guo.chenliang
● E-mail: jjeasy@dawson-plastic.com
jjeasyguo@hotmail.com
● Add: 18#610 BIGUIYUAN, YANGTANG ROAD, TANGQIAO TOWN, ZHANGJIAGANG CITY, JIANGSU PROVINCE, CHINA

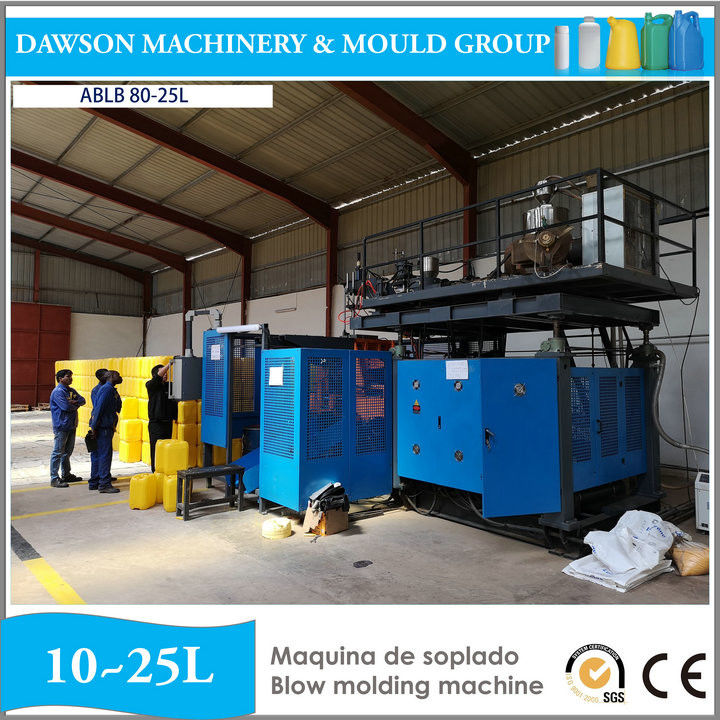

Automatic Extrusion Blow Molding Machine ABLB80-25L
