660 mm Mold Platen Size 67 kw Power Jerry Can 20l 25l HDPE Plastic Tank Container Drum Extrusion Blowing Moulding System

$54,000/sets 1-1 sets
가격
660 mm Mold Platen Size 67 kw Power Jerry Can 20l 25l HDPE Plastic Tank Container Drum Extrusion Blowing Moulding System
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
영상출고검사: 제공
기계 시험 보고서: 제공
핵심 구성 요소: 지탱하는 PLC, 엔진, 기어박스, 기어
플라스틱 가공: PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP
원산지: 중국 장쑤성
brand name: DAWSON
전압: 440V/415V/380V/220V
차원 (L*W*H): 4.4*3.4*3.6
클램핑 력 (KN): 270
나사 직경 (mm): 90mm
출력 (kg/h): 130kg/h
오토메이션: 오토매틱
나사 가열 구역 수: 4
스크류 발열량(kW): 10kW
압출기 모터 동력(kW): 30kW
형판 크기(너비)(mm): 660mm
형판 크기(높이)(mm): 680 mm
공기압 (MPA): 0.8MPa
공기 소비량(m³/min): 2.2m³/분
다이 헤드 발열량(kW): 8 kW
전력(kw): 67
무게(t): 11.3
주요 판매 포인트: 작동하기 쉬움
보증: 1년
블로우 성형 유형: 압출 블로우 성형기
최대 응용 프로그램 크기: 30L
냉각 수압: 0.6 MPa
물 소비량: 100 L/분
곰팡이 수명: > 1,000,000 사이클
곰팡이 재료: P20, 2316, S136H, 베릴륨 구리가 포함된 알루미늄.
언어 설정: 중국이고 영어 조작 패널
교육은 공급했습니다: 중국과 영어에 관한 교육
노동력의 수요: 1~2 오페레토르
샘플 제공: 필요할 경우에
상태: 새로운
핵심 구성 요소의 보증: 1년
어플리케이션: 병, 제리 캔, 항아리, 갤런
적용산업: 공장, 식품 & 음료 공장, 농장, 식료품 상점을 제조하기
쇼룸 위치: 필리핀 제도
년도: 새로운
중공 부분 크기: 30L
어큐뮬레이터 용량(L): 0L
강조하다:

20l Jerry Can Blow Moulding System

,

660 mm Jerry Can Blow Moulding System

,

25l Jerry Can Blow Moulding System

기본 정보
결제 및 배송 조건
포장 세부 사항: 블로우 성형기는 플라스틱 필름으로 포장되어 있습니다. 보조 기계 및 예비 부품은 나무 상자로 포장됩니다. 컨테이너로의 적재는 무게 균형에 따라 이루어지며 모든 패키지의 위치는 컨테
제품 설명
660 mm Mold Platen Size 67 kw Power Jerry Can 20l 25l HDPE Plastic Tank Container Drum Extrusion Blowing Moulding System 0


Products Description

DAWSON MACHINERY & MOULD GROUP

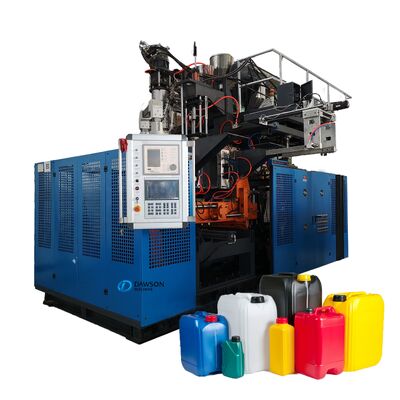

Extrusion Blow Molding Machine ABLB90-30

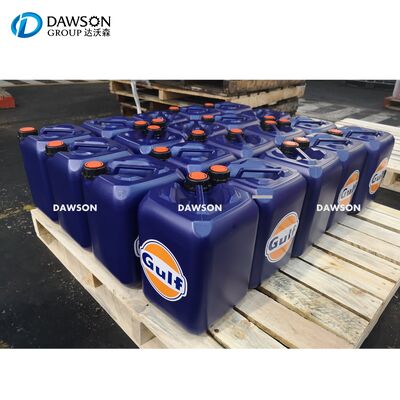

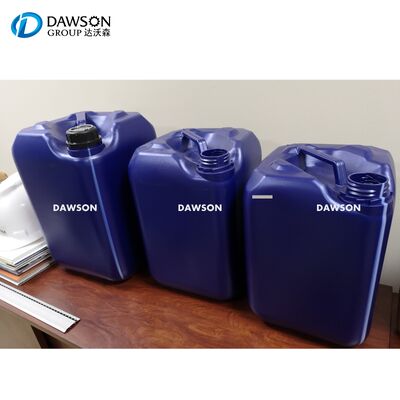

suitable for making plastic bottle, jars, containers, jerrycans up to 30L, The whole blow molding machine is equipped with
bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation and high automation.
660 mm Mold Platen Size 67 kw Power Jerry Can 20l 25l HDPE Plastic Tank Container Drum Extrusion Blowing Moulding System 1
660 mm Mold Platen Size 67 kw Power Jerry Can 20l 25l HDPE Plastic Tank Container Drum Extrusion Blowing Moulding System 2
Machine Model
Max. Bottle size
Production forecast
Single Station/1 Head
Single Station/
1 Head
30L
48~55 BPH
Technical Parameters
Name
Units
ABLB90-30L
Max.product volume
L
30L
Screw diameter
MM
90
Screw drive power
KW
10
Output of HDPE
KG/H
130
Oil pump drive power
KW
11
Clamping force
KN
270
Max.size of mold
MM
680× 660
Template size
MM
290×320
Mold stroke
MM
450-950
Size of machine
L×W×H
4.4×3.4×3.6
Weight of machine
TON
11.3
Photos Reference
660 mm Mold Platen Size 67 kw Power Jerry Can 20l 25l HDPE Plastic Tank Container Drum Extrusion Blowing Moulding System 3
660 mm Mold Platen Size 67 kw Power Jerry Can 20l 25l HDPE Plastic Tank Container Drum Extrusion Blowing Moulding System 4

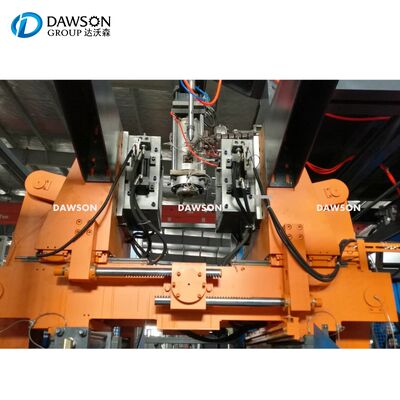

Clamping System
660 mm Mold Platen Size 67 kw Power Jerry Can 20l 25l HDPE Plastic Tank Container Drum Extrusion Blowing Moulding System 5
660 mm Mold Platen Size 67 kw Power Jerry Can 20l 25l HDPE Plastic Tank Container Drum Extrusion Blowing Moulding System 5

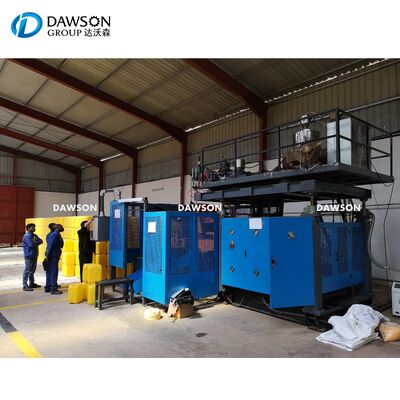

Workshop
Our professional blow molding machine workshop...
660 mm Mold Platen Size 67 kw Power Jerry Can 20l 25l HDPE Plastic Tank Container Drum Extrusion Blowing Moulding System 7
High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU,

HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
660 mm Mold Platen Size 67 kw Power Jerry Can 20l 25l HDPE Plastic Tank Container Drum Extrusion Blowing Moulding System 8
660 mm Mold Platen Size 67 kw Power Jerry Can 20l 25l HDPE Plastic Tank Container Drum Extrusion Blowing Moulding System 9
Company Profile
DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India,
Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia,
Venezuela, Peru....

We have our own service team in
Saudi Arabia, Colombia, Panama, South Africa ...

DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, blow molding machine,
injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our
energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market, customers from more than 45
countries, we provide complete solution for your plastic industry business, as well as all sorts of technical support & after-sale
services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
660 mm Mold Platen Size 67 kw Power Jerry Can 20l 25l HDPE Plastic Tank Container Drum Extrusion Blowing Moulding System 10
660 mm Mold Platen Size 67 kw Power Jerry Can 20l 25l HDPE Plastic Tank Container Drum Extrusion Blowing Moulding System 11
FAQ
Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle
will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?


DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
